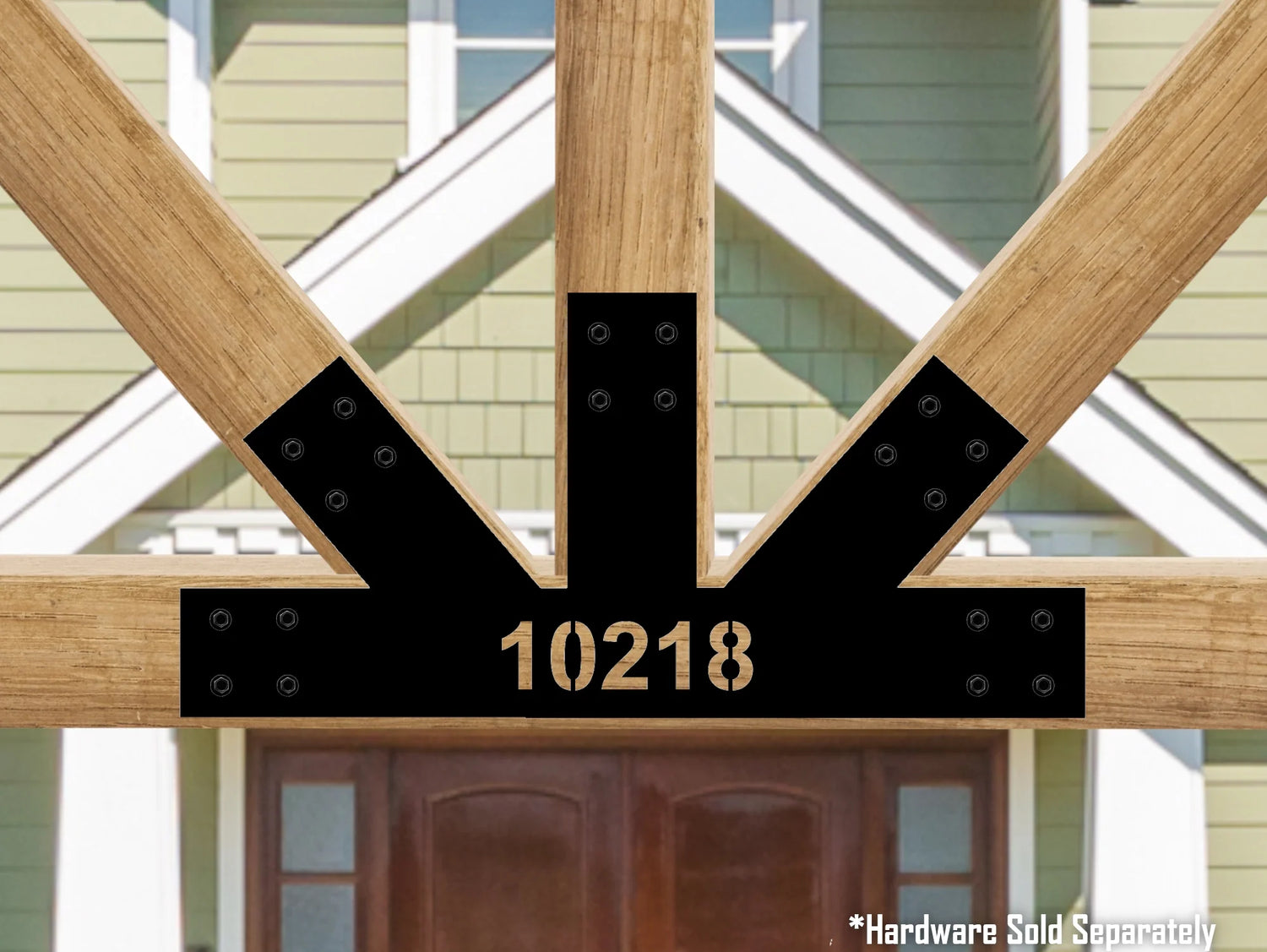

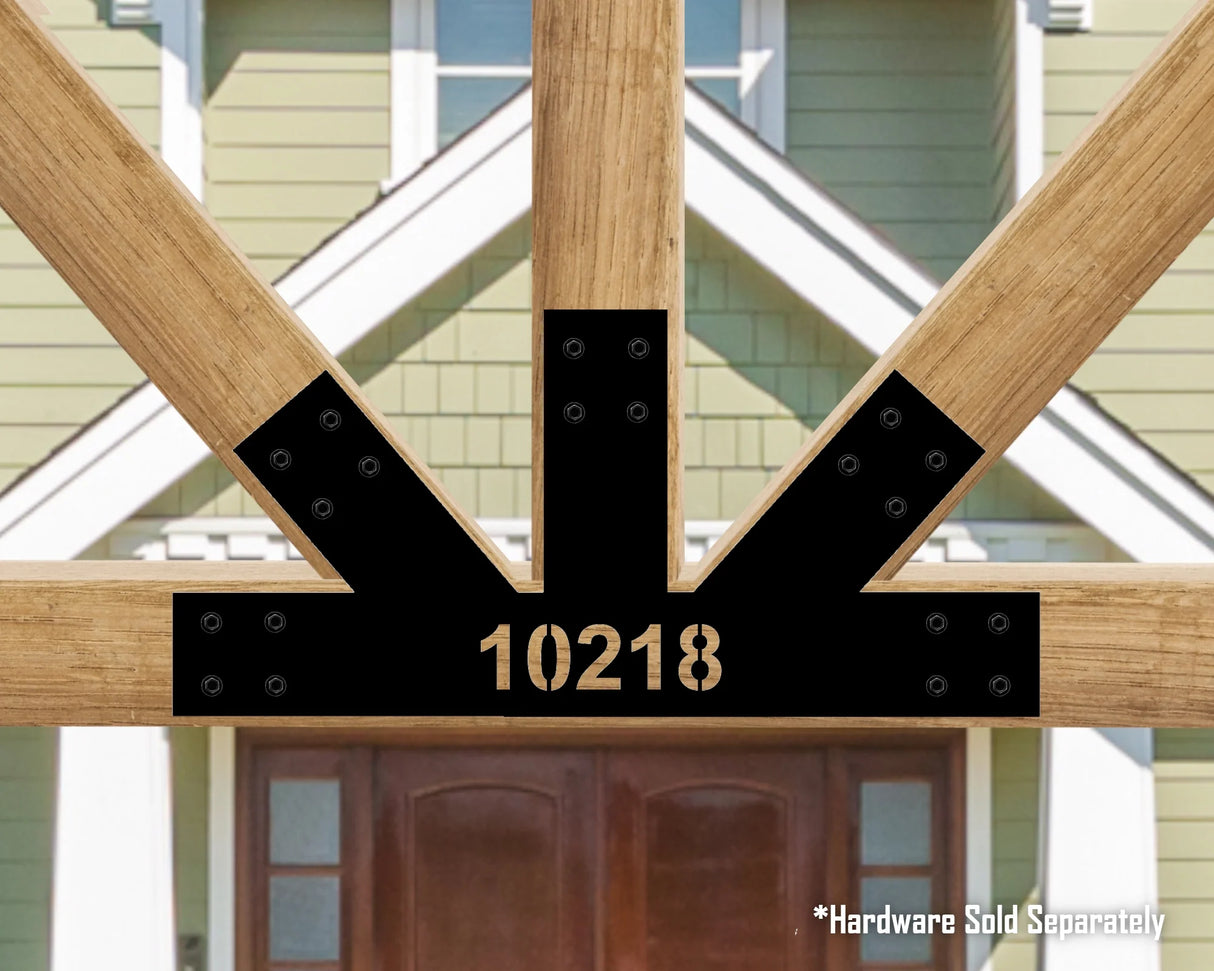

Custom Gable Address Bracket for Exposed Beams, Offset Bottom Joint

PLEASE SEE PICTURE FOR ANGLES AND DIMENSIONS NEEDED*

We understand that ordering these can be overwhelming if you don't work in construction everyday. If you have any questions please reach out to us, we are here to help!

FOR ORDERING: Please give the measurements of your wood section below (See second picture for details)

-Choose the Thickness of the bracket you want - We have two thicknesses available 12ga or 1/4

-Choose the height you want your bracket to be

-Choose the width that you want your bracket to be

IN THE NEXT STEPS YOU WILL BE MEASURING THE WOOD SECTION FOR THE FAN BRACKET TO FIT IN

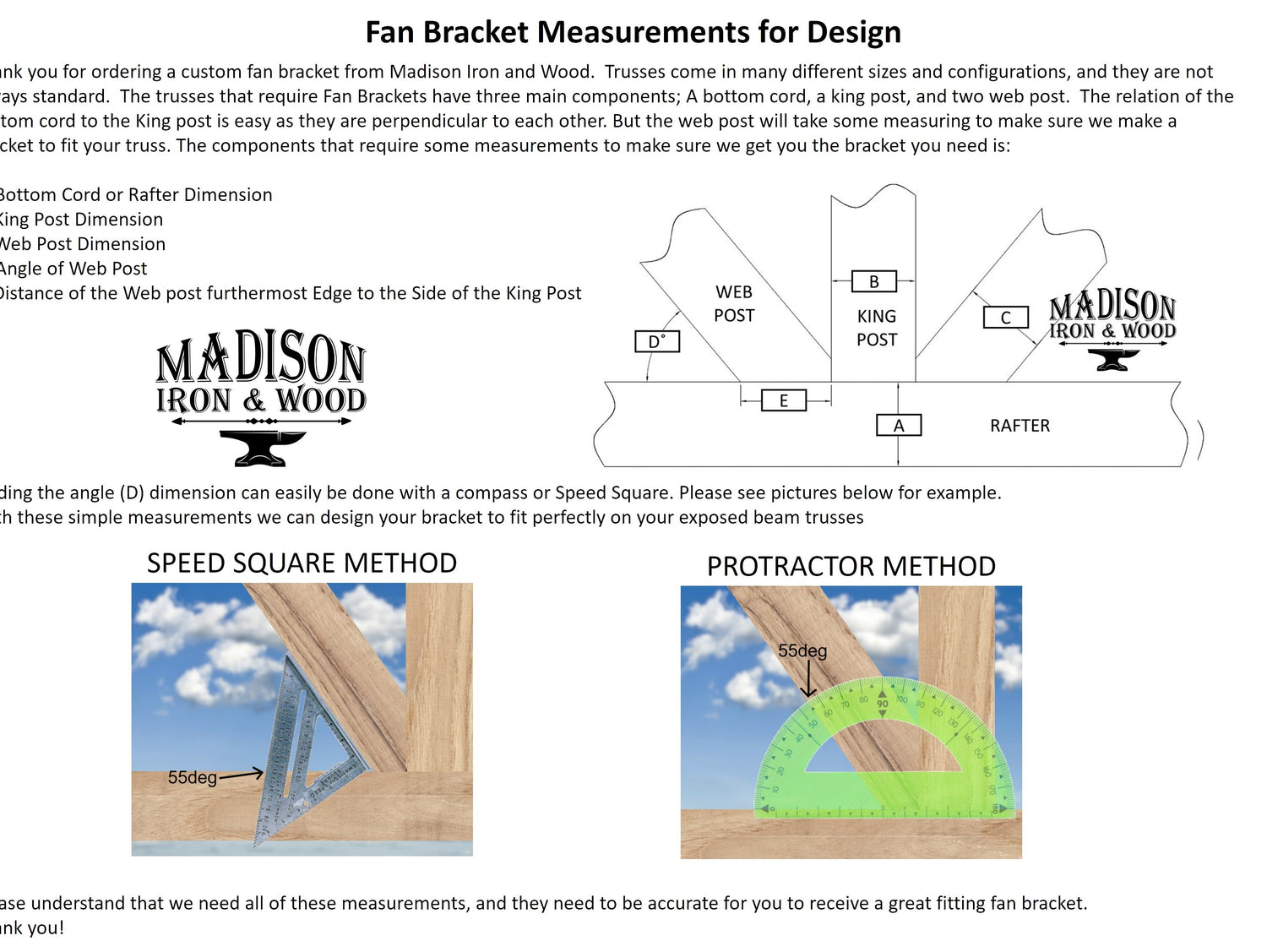

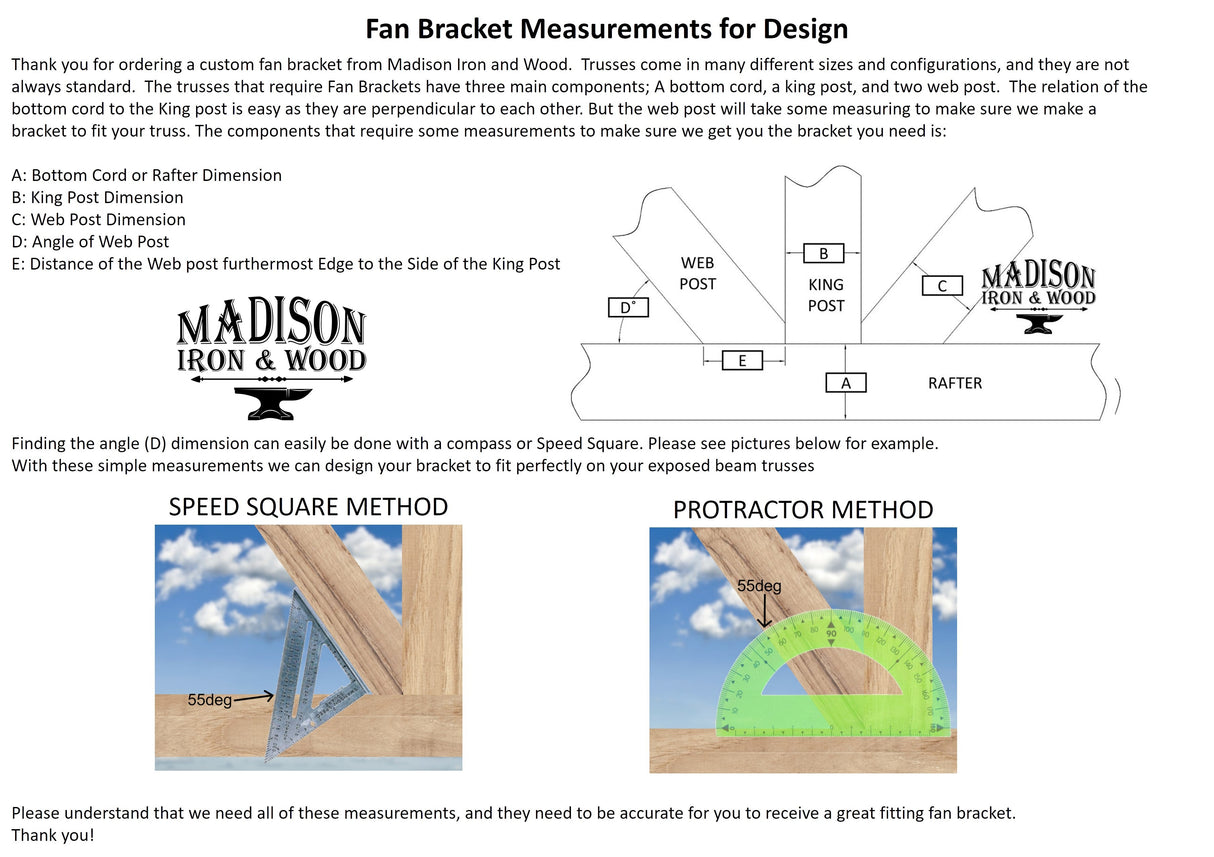

-Give Dimension A: Bottom Cord width - See second picture for detail

-Give Dimension B: King Post Width - See second picture for detail

-Give Dimension C: Web Post Width - See second picture for detail

-Give Angle D: Angle of Web Post - See second picture for detail and measuring method - Also check out our video blogs for details on how to measure for this

-Give Dimension E: Web Post furthest distance from edge of King Post - See pic

-Enter the Address Name or number that you want: 9 characters max

If you watch the video and still have questions let us know and we can help.

Finished in a super tough UV-resistant baked on powder coat matte black paint rated for outdoor use, unless bare metal option is chosen.
Holes large enough for 1/4" or 5/16" Lags - sold separately - If you need a different hole size, please let us know and we can accommodate.

We do not have the edges of the metal extend to the edge of the board. Typical edge is 1/4" for 3-1/2" boards or less, and 1/2" edge for >3-1/2" boards - This is because you will want that if there is any angle that isn't quite right or if board widths vary. These would cause problems if the bracket extends to the edge.

Fan brackets are a perfect touch to your exposed beams. Not only are they aesthetically pleasing but they also add additional support to your beams. These brackets should not be used solely for structural purposes, please consult a local contractor to make sure they follow your local codes.

*HARDWARE SOLD SEPARATELY*

*All images and bracket designs are the sole property of Wood Post Brackets and shall not be used by any other company, person, or entity without express permission.
