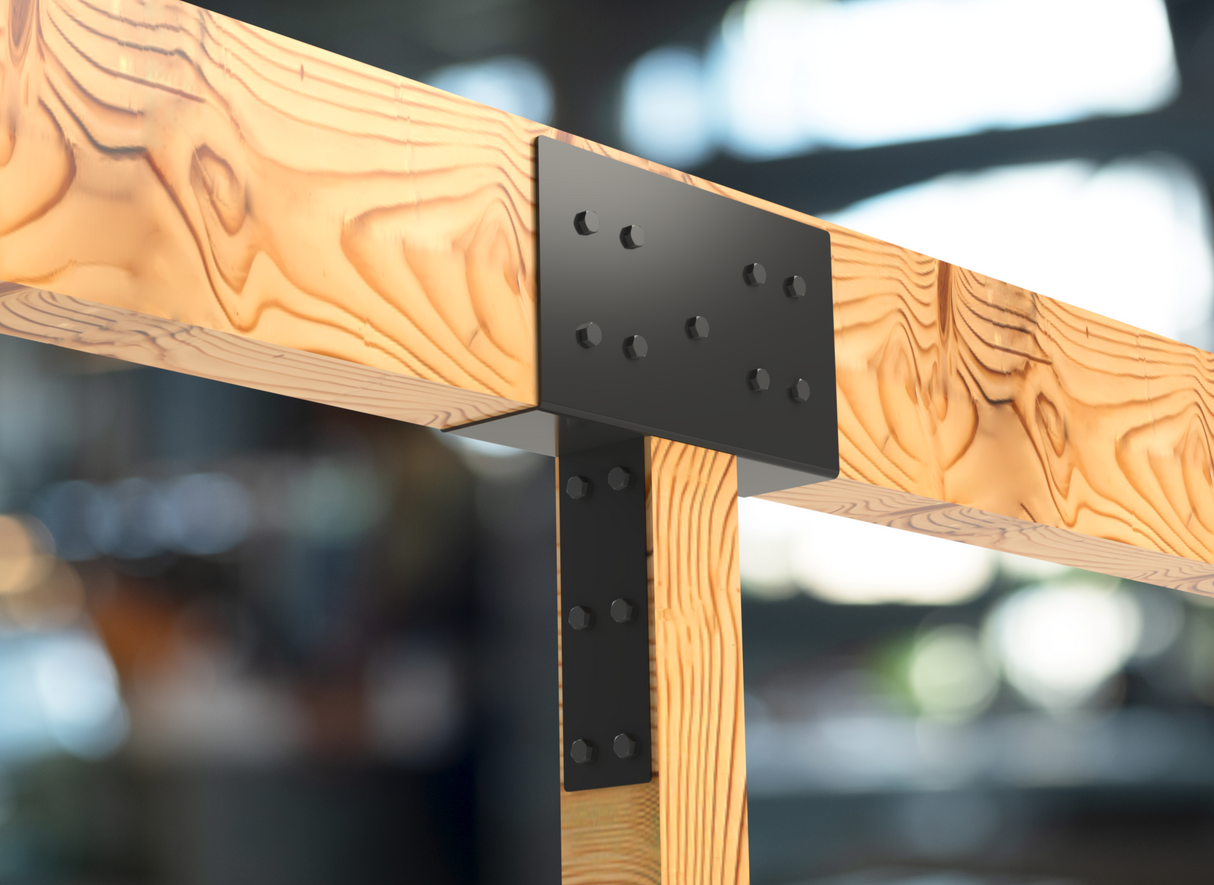

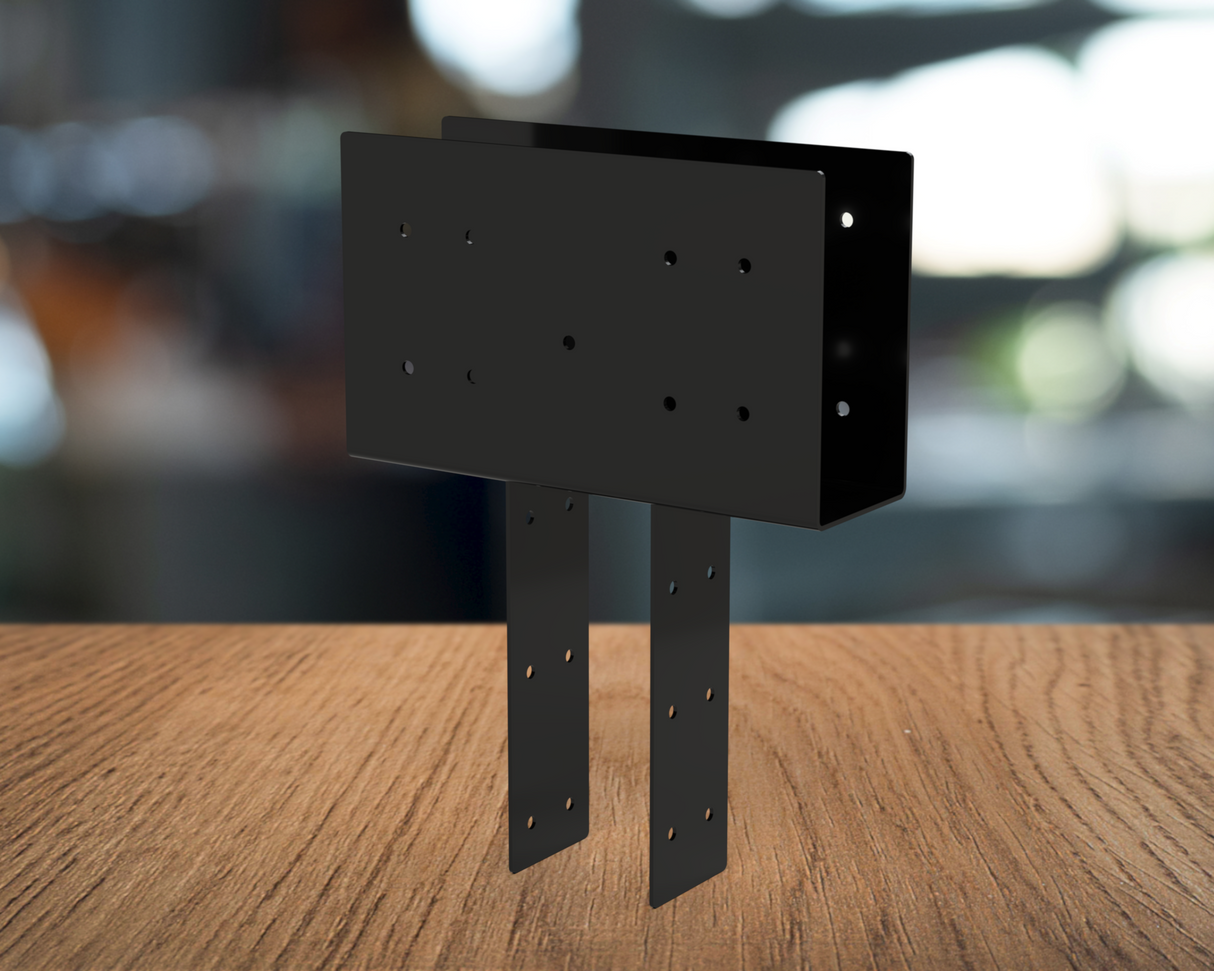

Column to Beam Brace - 5 Inch Beams (CB5.125-CB5.5)
Couldn't load pickup availability
Column to Beam Brace - 5 Inch Beams (CB5.125-CB5.5)
- Please see Size Chart for detailed dimensions
- 12-Gauge and 1/4" steel options available
- Requires 30, 1/2" bolts (sold separately)
- 8 Color options available
- Powder coat paint with Zinc coated primer (good for indoor and outdoor use)
- Made in the USA by our Veteran Owned Company
- Custom sizing available, please use 'contact us' page for a free quote!
Processing - 3-5 Business Days
Shipping - 3-7 Days
All orders are "made-to-order" which means we manufacture your brackets after you purchase them. For more information please visit our Shipping and Returns page.
Jump to...
Specifications
Size Chart
Reviews
Size Chart
Beam Width
W1
W2
H1
L
CB5.125-3.625
5-1/8"
5-1/4"
3-5/8"
8-1/4"
13-1/2"
CB5.125-5.5
5-1/8"
5-1/4"
5-1/2"
8-1/4"
13-1/2"
CB5.125-7.5
5-1/8"
5-1/4"
7-1/2"
8-1/4"
13-1/2"
CB5.25-3.625
5-1/4"
5-1/2"
3-5/8"
6-3/4"
11-1/2"
CB5.25-5.5
5-1/4"
5-1/2"
5-1/2"
6-3/4"
11-1/2"
CB5.25-7.5
5-1/4"
5-1/2"
7-1/2"
6-3/4"
11-1/2"
CB5.25-7.125
5-1/4"
5-1/2"
7-1/8"
6-3/4"
11-1/2"
CB5.5-3.625
5-1/2"
5-1/2"
3-5/8"
6-3/4"
11-1/2"
CB5.5-5.5
5-1/2"
5-1/2"
5-1/2"
6-3/4"
11-1/2"
CB5.5-7.5
5-1/2"
5-1/2"
7-1/2"
6-3/4"
11-1/2"
CB5.5-7.125
5-1/2"
5-1/2"
7-1/8"
6-3/4"
11-1/2"
