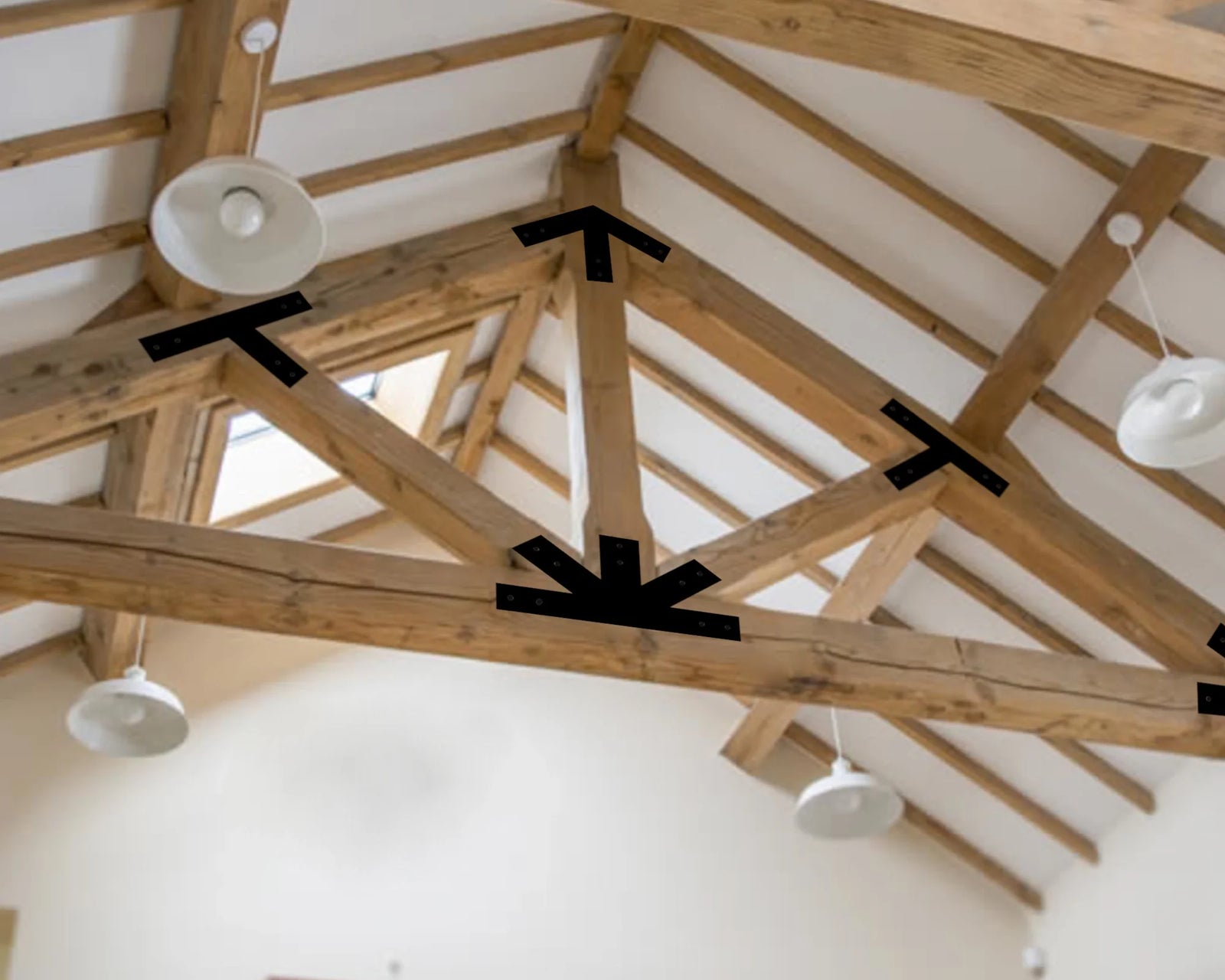

How to Find the Pitch of a Truss

Trusses are a key component in many structural frameworks, particularly in roofing. One of the most important aspects of a truss design is its pitch, which determines the steepness of the roof and affects both structural stability and aesthetic appeal. Understanding how to calculate the pitch of a truss is essential for architects, engineers, and builders. This article will walk you through the step-by-step process of determining the pitch of a truss.

What Is the Pitch of a Truss?

The pitch of a truss refers to the slope or angle of the roof. It is commonly expressed as a ratio of rise to run (e.g., 4:12), a percentage, or an angle in degrees. A steeper pitch allows for better water drainage and more attic space, while a shallower pitch is often used in modern, low-profile buildings.

Step-by-Step Guide to Finding the Pitch

To calculate the pitch of a truss, follow these simple steps:

1. Identify Key Measurements

You need to determine two main values:

• Rise: The vertical height from the base of the truss to the peak.
• Run: The horizontal distance from the outer wall to the center of the truss (half of the total span).

2. Calculate the Pitch Ratio

The pitch is often expressed as a ratio of rise to run. This is written as:

$$\text{Pitch Ratio} = \frac{\text{Rise}}{\text{Run}}$$

For example, if the rise is 6 feet and the run is 12 feet, the pitch would be:

$$\frac{6}{12} = 1:2 \quad \text{or} \quad 6:12$$

This means the roof rises 6 inches for every 12 inches of horizontal distance.

3. Convert to Degrees (If Needed)

Here is a chart to make this super simple.

4. Convert to Percentage (If Needed)

To express pitch as a percentage:

$$\text{Pitch Percentage} = \left( \frac{\text{Rise}}{\text{Run}} \right) \times 100$$

Using our previous example:

$$\left( \frac{6}{12} \right) \times 100 = 50\%$$

Common Truss Pitch Ratios

Why Pitch Matters

• Structural Strength: A well-designed pitch ensures stability and durability.
• Weather Resistance: Steeper pitches help shed rain and snow more effectively.
• Aesthetics: Pitch affects the architectural style of a building.
• Energy Efficiency: Proper pitch allows for better insulation and ventilation.

Conclusion

Determining the pitch of a truss is a simple but essential calculation in construction. Whether expressed as a ratio, angle, or percentage, understanding truss pitch helps in designing efficient and structurally sound buildings. By following the steps outlined above, you can easily calculate and apply the correct pitch to your projects.
