Joist Hangers - Hidden Mount

Joist Hangers (Saddle Brackets) - Hidden Mount

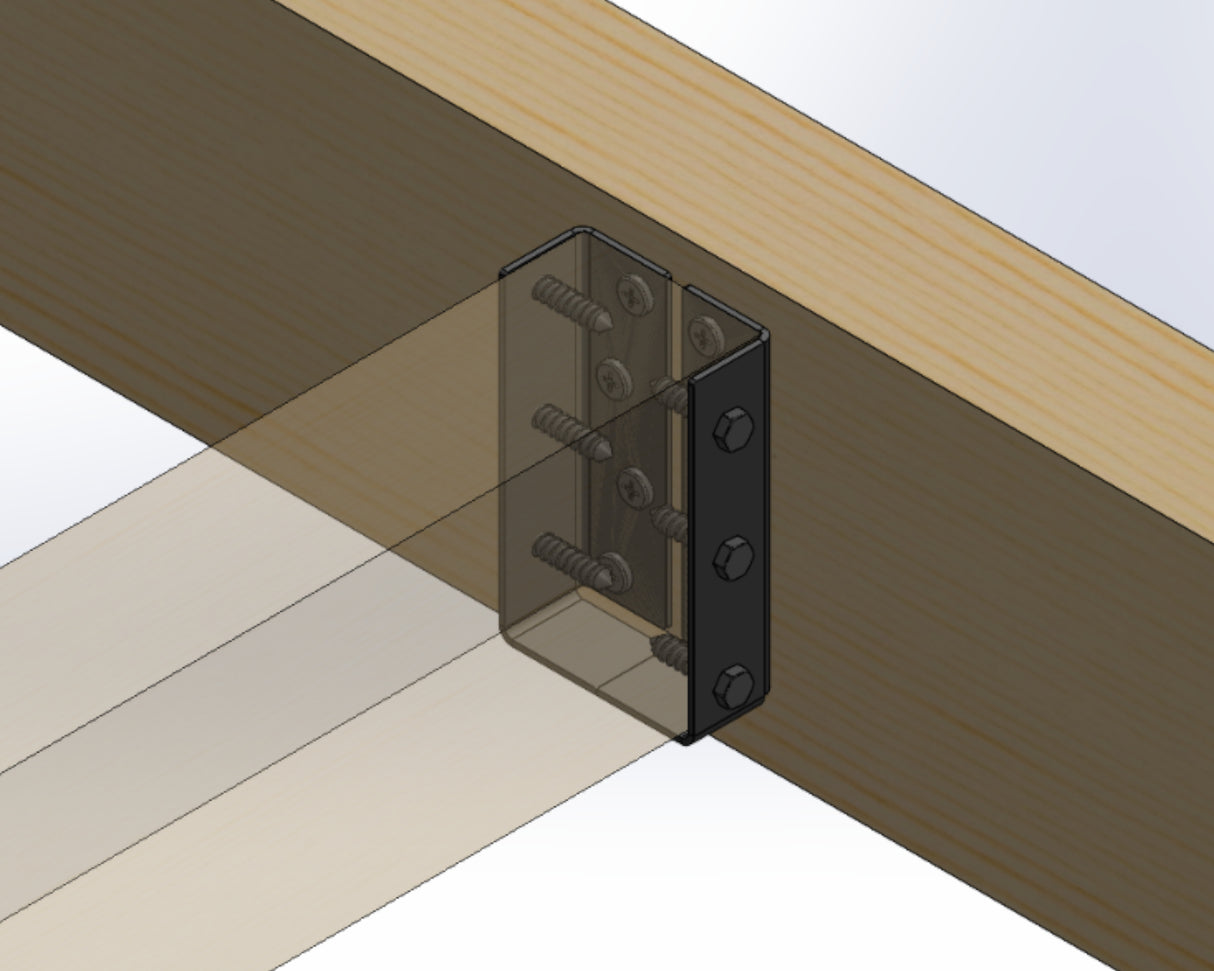

This joist hanger is a great supporting bracket for your joists. It also can add a decorative touch to any joist ends. Made from Heavy Duty 12-gauge or 1/4-inch-thick steel and finished in a super tough baked on powder coat finish with UV inhibitors that will not fade over time like most other paints. Our brackets are made to order, that is why we are able to offer a wide variety of colors and size options. If you have specific bracket needs let us know and we can help.

If you have some boards outside these dimensions, we do have true sized joist hangers, or we can make custom orders. If you need help sizing or have any questions, just contact us at woodpostbrackets@gmail.com

• Holes are offset for the cradle that holds the joist, so wood screws do not run into each other
• Holes are sized for 5/16" bolts (sold separately) - if you need matching colored lag bolts you can purchase them in the link below
• Bracket flange width is 2" - But if you have a more specific application let us know we may be able to make you a custom order.
• Pictures are just for reference; actual bracket may look different for different width or height - but the style will remain consistent.

Sizes:

   - Actual Width - 1-9/16", 2", 3-9/16", 4", 5-9/16", 6"

   - Height - 3", 4", 5", 6", 7", 8", 9", 10", 11", 12", 13", 14", 15", 16"

   - *Custom Sizes Available Upon Request*

Materials- Made of thick 12ga or 1/4-inch-thick steel sourced from the USA. Painted with a super tough baked on powder coat finish with UV inhibitors that will not fade over time like most other paints. 11 color options available.

Hole Sizes:

- Visible holes large enough for 5/16" bolts. (Hardware sold separately - Available Here)

- Hidden holes large enough for 1/4" bolts.

Processing - 5-8 Business Days

Shipping - 3-5 Days

All orders are "made-to-order" which means we manufacture your brackets after you purchase them. For more information please visit our Shipping and Returns page.

***Custom brackets may take 10-20 business days to manufacture, starting from the day the final draft is accepted.***
